HLZW-221

Automatic Oil Filling Machine HLZW-221:

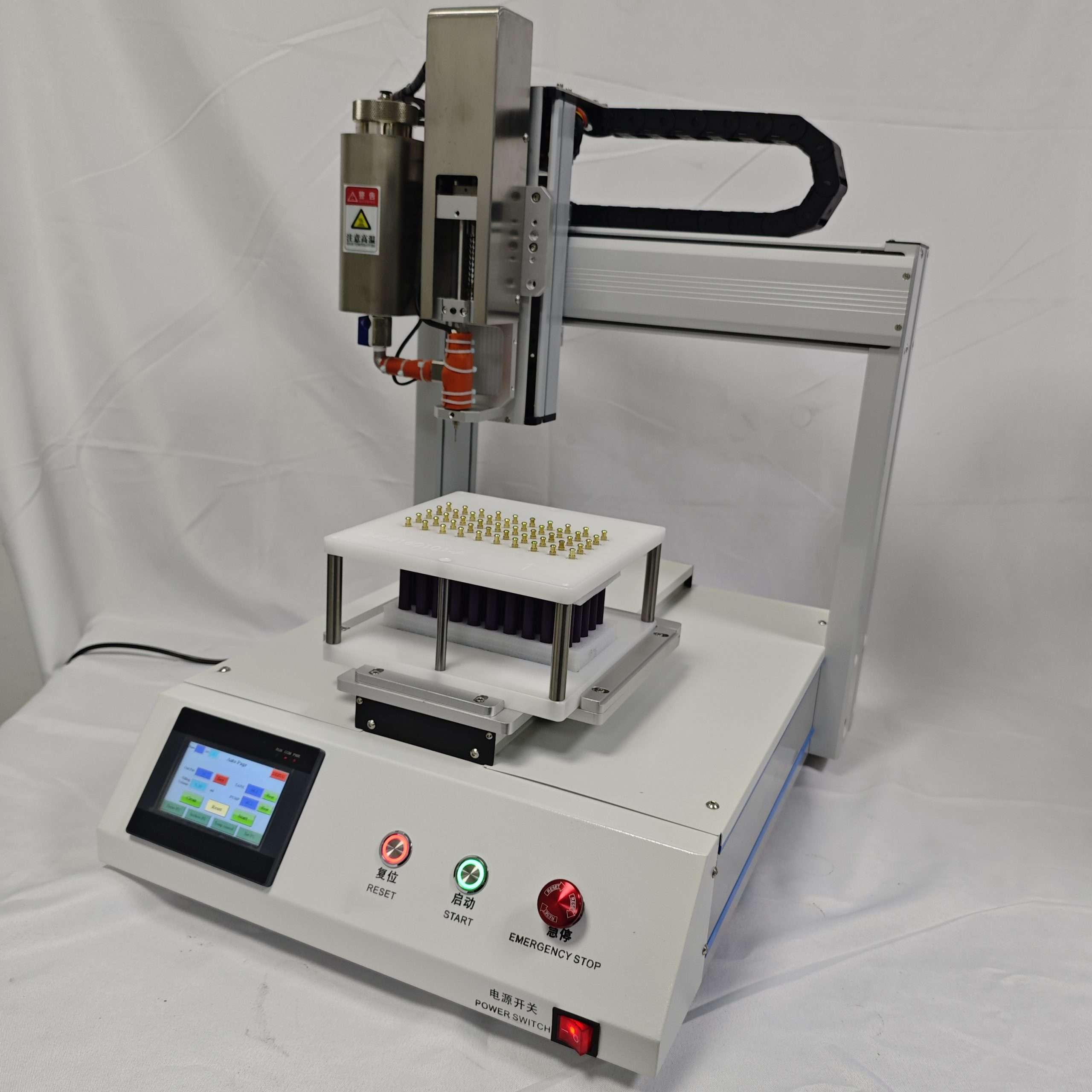

HLZW-221 is an automatic oil filling machine offering higher efficiency and lower labor costs compared to the HLZW-100R. It uses a three-axis platform precisely controlled by Touch Screen + PLC + Custom Program to achieve automated filling. Unlike typical automated machinery requiring a technical threshold, this model features highly optimized human-machine interaction. The operation interface is simple and easy to understand, allowing novices to operate it directly after brief training. As our factory’s first model designed for the cannabis industry, years of technical accumulation and optimization have made it impeccable in both stability and efficiency, making it the best-selling automated filling equipment in the industry.

Automated production, high efficiency, saves significant labor costs.
It is simple to operate, easy to learn and use, quick to get started, and has no usage barriers.
High filling precision, stable and durable, easy to clean and maintain.
Compact size, lightweight, no air pump, noiseless.

Machine Advantages

Purely electrical equipment, no air supply needed, plug and play.
Adjustable filling volume, self-developed syringe, precision up to 0.5%-1%.
Can store 10 sets of filling programs, making product switching more convenient.
Temperature can be freely controlled, two independent temperature control channels.
One-key cleaning function solves cleaning difficulties when changing flavors.
Production output counting, clear at a glance.
Motor-driven, more stable filling and better volume control compared to pneumatic equipment.
BrandZhuowei Intelligent
NameAutomatic Oil Filling Machine (Single Head)
ModelHLZW-221
Automation LevelAutomatic
CustomizationCustomization Supported
Oil Barrel Capacity300ml/500ml
Number of Filling Heads1
Production Capacity10-30 pcs/min
Filling Volume0.2-3ml / 0.2-5ml
Filling Precision0.01
Applicable Bottle Diameter2mm and above
Applicable Bottle Height5-100mm
Working PrincipleSyringe Pump
Filling PrincipleNegative Pressure
Control MethodTouch Screen + PLC + Custom Program

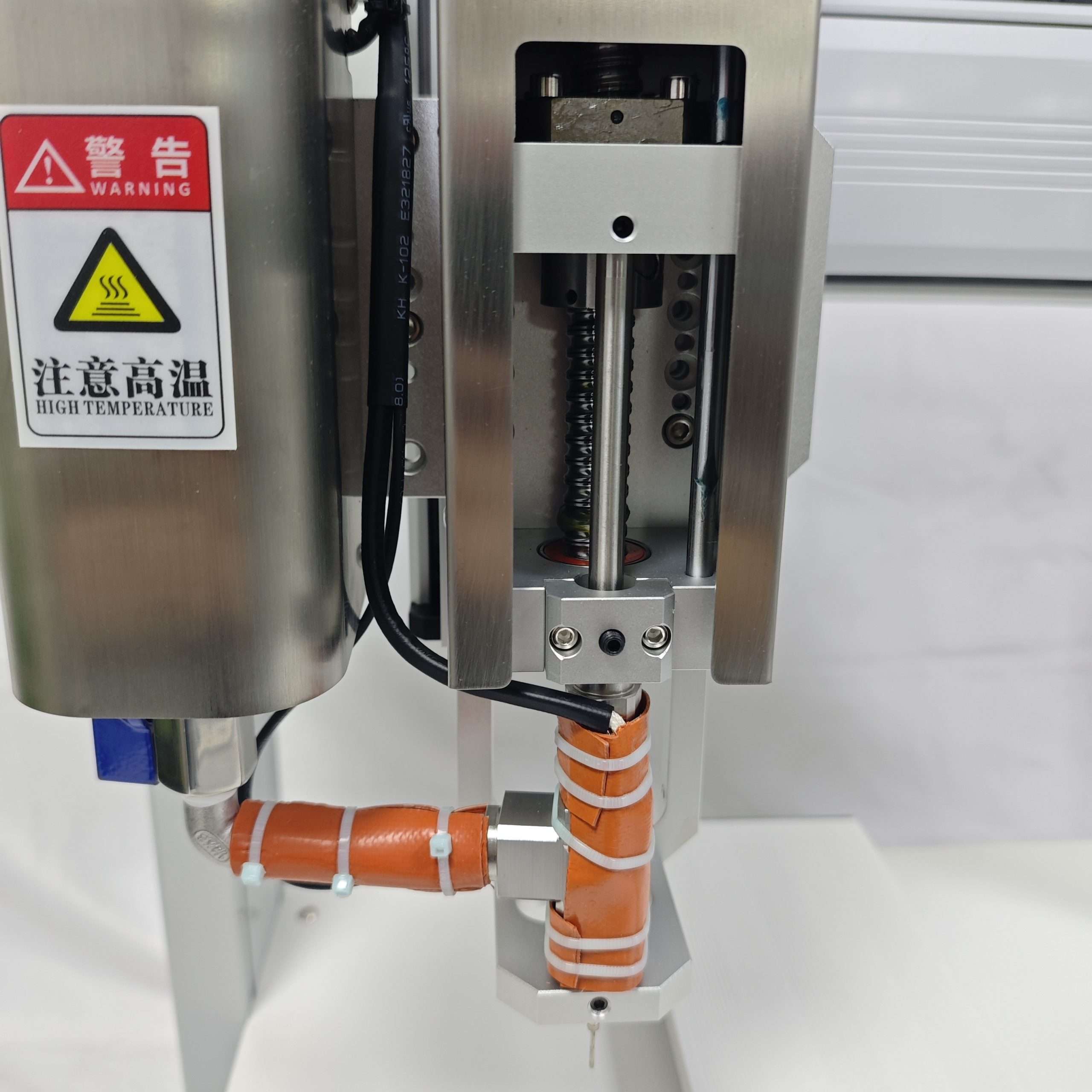

Drive MethodMotor + Ball Screw
Power Supply (Optional)AC100V-120V ; AC200V-240V
Power700W
Applicable ObjectsCBD / THC / Nicotine E-liquid / Other Liquids
Applicable IndustriesCBD / THC / Vaping / Cosmetics
Screen Size3.5 inches
Packaging TypeExport Wooden Box
Dimensions / Net Weight520*640*650mm / approx. 46kg
Dimensions w/ Wooden Box WDH (mm) / Weight570*700*795mm / approx. 68kg
After-sales Service1-Year Warranty
Cross-border Export Exclusive SupplyYes
